Files of Axidian AM OMNIKEY Provider reside in: axidian AM\Axidian AM Providers\Axidian AM OMNIKEY Provider\<Version number>\

  • Axidian AM OMNIKEY Provider х64.msi is the installation package of Axidian AM OMNIKEY Provider x64 version.
  • Axidian AM OMNIKEY Provider х86.msi is the installation package of Axidian AM OMNIKEY Provider x86 version.

About the Axidian AM OMNIKEY component

Axidian AM OMNIKEY Provider is designed to be used together with Axidian AM Windows Logon and Axidian AM Enterprise SSO. The component integrates HID OMNIKEY smartcard readers with the Axidian AM Access Management modules. For more information about OMNIKEY readers and cards, please visit the manufacturer's website. The following models of HID OMNIKEY scanners are currently supported:

  • OMNIKEY 5325
  • OMNIKEY 6321
  • OMNIKEY 5321 CLi
  • OMNIKEY 6321 CLi
  • OMNIKEY 5427 CK
  • OMNIKEY 5421
  • OMNIKEY 5022
  • OMNIKEY 5025

Installation

  1. Please use the Axidian AM OMNIKEY Provider.msi file to install the MFA Provider on the Axidian AM server and on your computer.

    If your infrastructure requires multiple Axidian AM servers, make sure to install the provider on all relevant servers.



  2. You may need to restart the system after installation. If the setup program prompts you to restart the system, click Yes.
  3. The product can be removed/restored by using a standard method supported by your operating system (via the Control Panel).


How to set up authentication parameters

Before you begin customization of your group policy, please add the Axidian AM policy templates to the list of administrative templates. Policy templates are a part of the provider's installation package and can be found in the Misc directory. The policy should apply to all Axidian AM servers and all client machines.

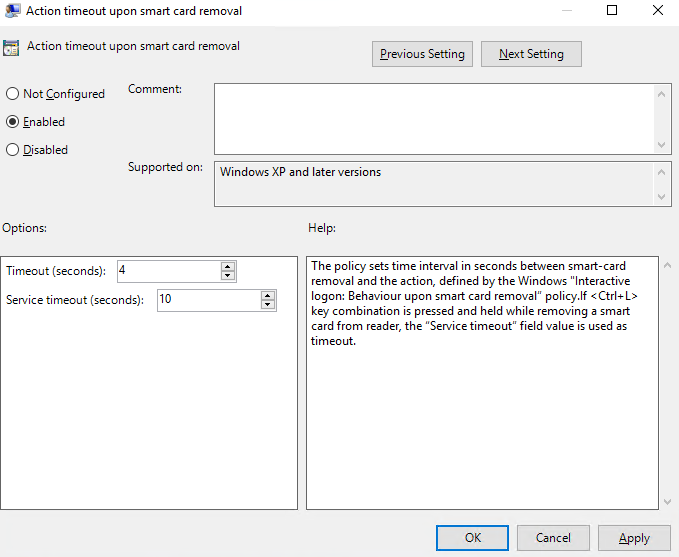

Job timeout when a smart card is removed

The Windows Logon® policy determines the duration of the standard and service timeout following the removal of an authentication device. You can use this policy to set the time period (in seconds) between the removal of smart card and the performance of action in line with the Windows policy − Interactive logon: Smart card enhanced removal behavior. Standard timeout option prevents automatic system lockout in the event of an accidental removal of an authentication device.

Service timeout option prevents automatic system lockout when you need to extract an authentication device for a reason (to train an additional authenticator, use another account and a different authenticator to access the system, etc.). If you want to activate service timeout, press and hold [Ctrl]+[L] before removing the device. If the policy has not been set or has been disabled, there will be no timeout before the automatic lockout of your workstation.

Authentication via Axidian AM OMNIKEY Provider

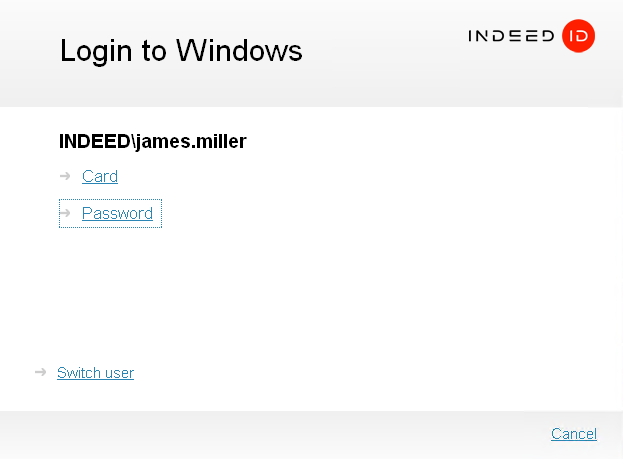

  1. Please select the login method during your first login to the system or to the app via Axidian AM authentication. You can do this by clicking Switch authentication Method on the Windows login screen (on the Authentication screen if you are using Enterprise SSO). Select Card (HID OMNIKEY) as a login method.
  2. Connect the HID OMNIKEY card reader and place a registered card on top of the device.
  3. Authentication will be completed once the card data has been processed. If your login has been successful, card authentication will be saved as your preferred login method, and you will be prompted to use it again during your next login to the system or app.
